SPECIFICATIONS

Application: MOBILE PHONE

Brand Name: diymore

Choice: yes

Condition: New

Dissipation Power: 10W 15W

High-concerned chemical: None

Origin: Mainland China

Package: SMD

Supply Voltage: 5-12V

Type: Drive IC

is_customized: Yes

semi_Choice: yes

Feature:

1. The use of high-quality materials, product quality is guaranteed

2. Small volume, high power, high efficiency, complete protocol

3. With over current, over voltage, over temperature, short circuit and other four protection functions

4. Wireless charger for smart phones, wearable applications and compliant with WPC standards

5. The products are widely used, suitable for various industrial DIY occasions

Parameters:

Conforms to WPC V1.2.3 wireless charging specification

Product standard: For QI

Built-in MCU, 12 bits high precision ADC, communication decoding

Input voltage/current: 5V-3A, 9V-1.67A, 12V-1.5A

Output current :5V-1A, 9V-1.66

Supports up to 15W power output

The efficiency is 75%-85%

Sensing distance: 0-8mm

Operating frequency: 100-200Khz

Support dynamic energy balance

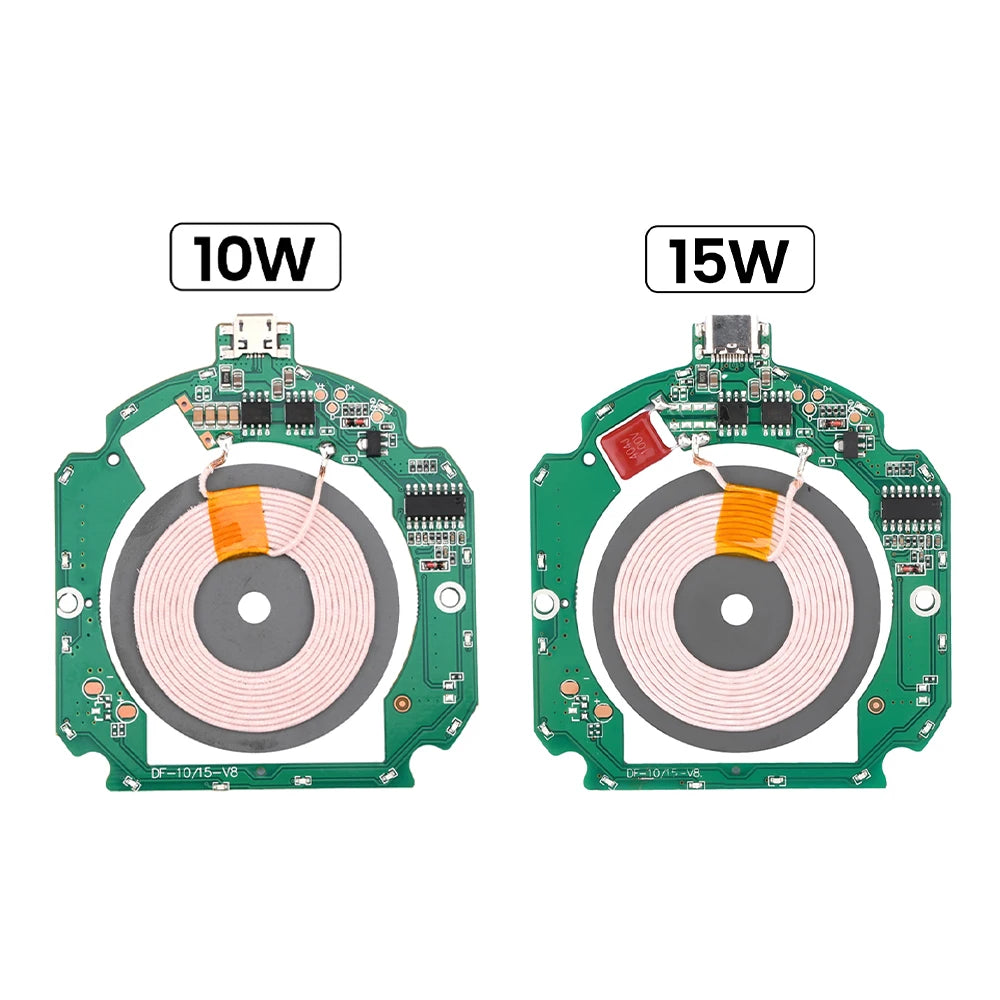

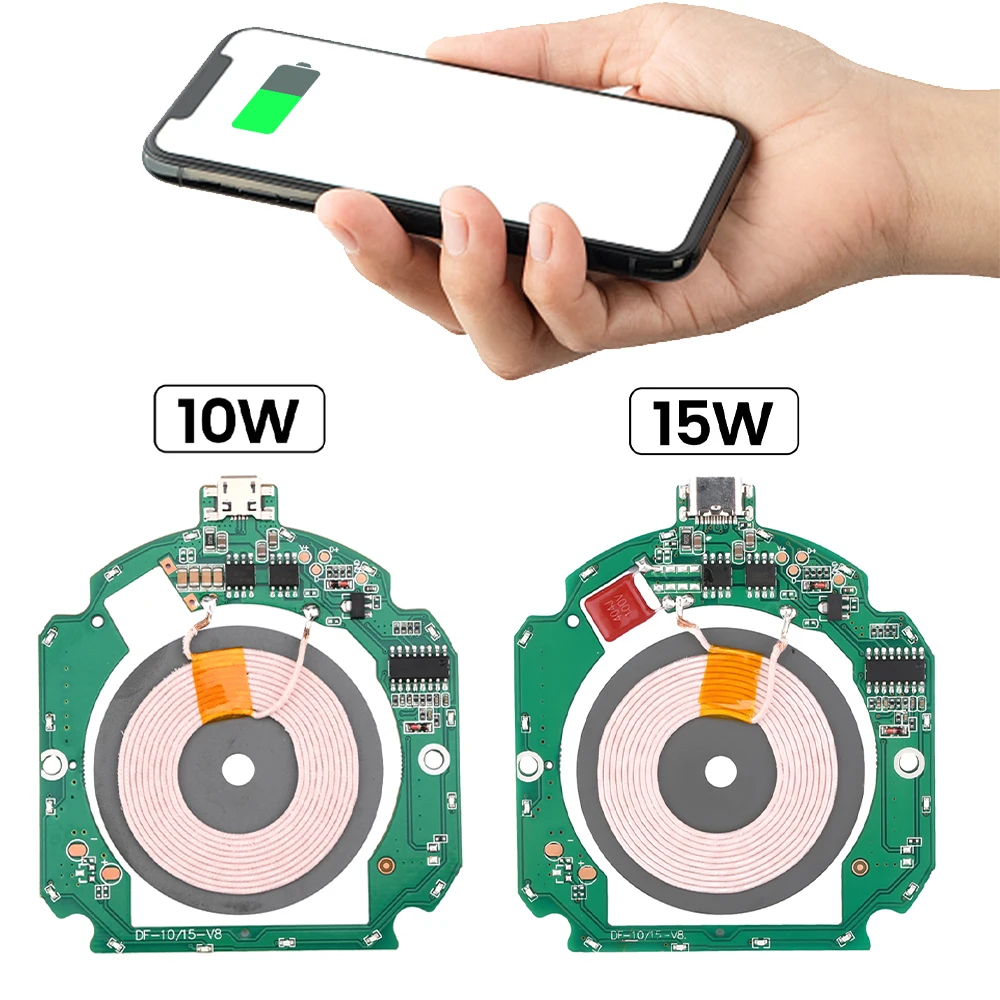

Intelligent recognition, 5W/7.5W/10W/15W charging

With over current, over voltage, over temperature, short circuit and other four protection functions

Supports Double Foreign body inspection (FOD)

Package included:

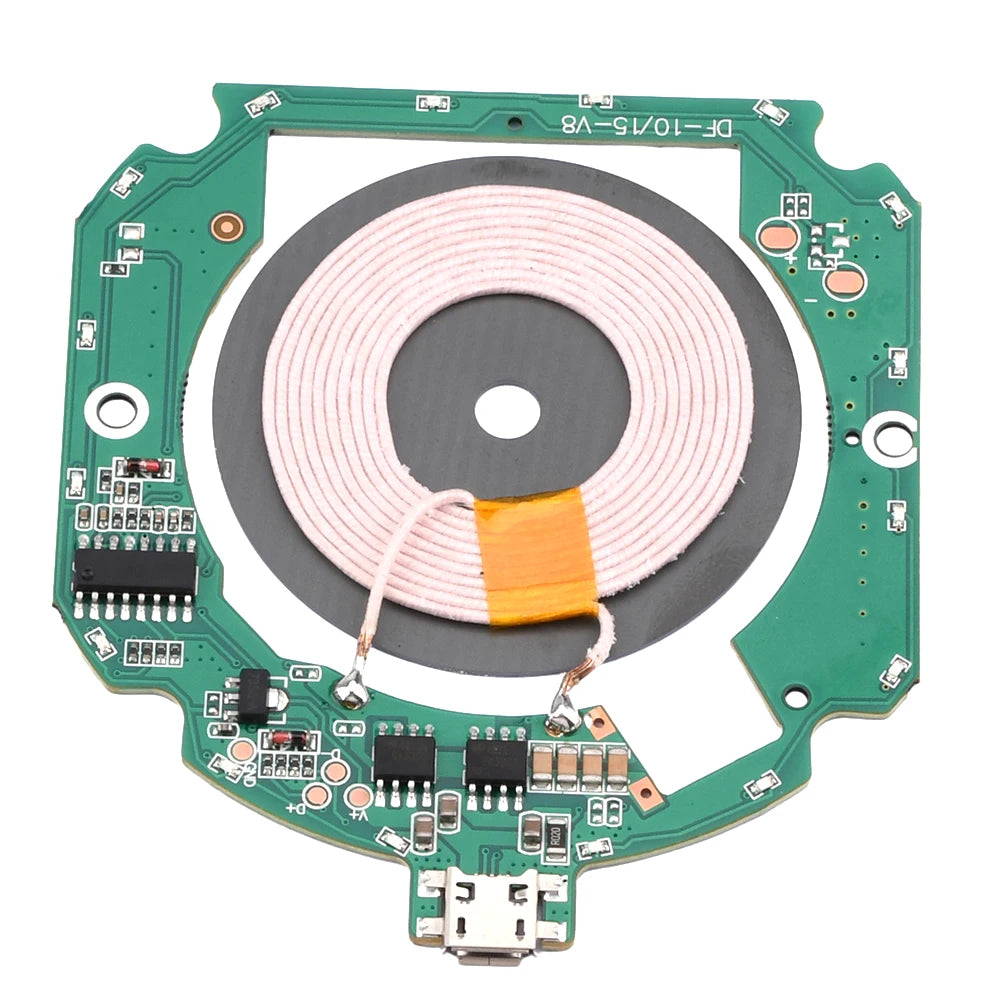

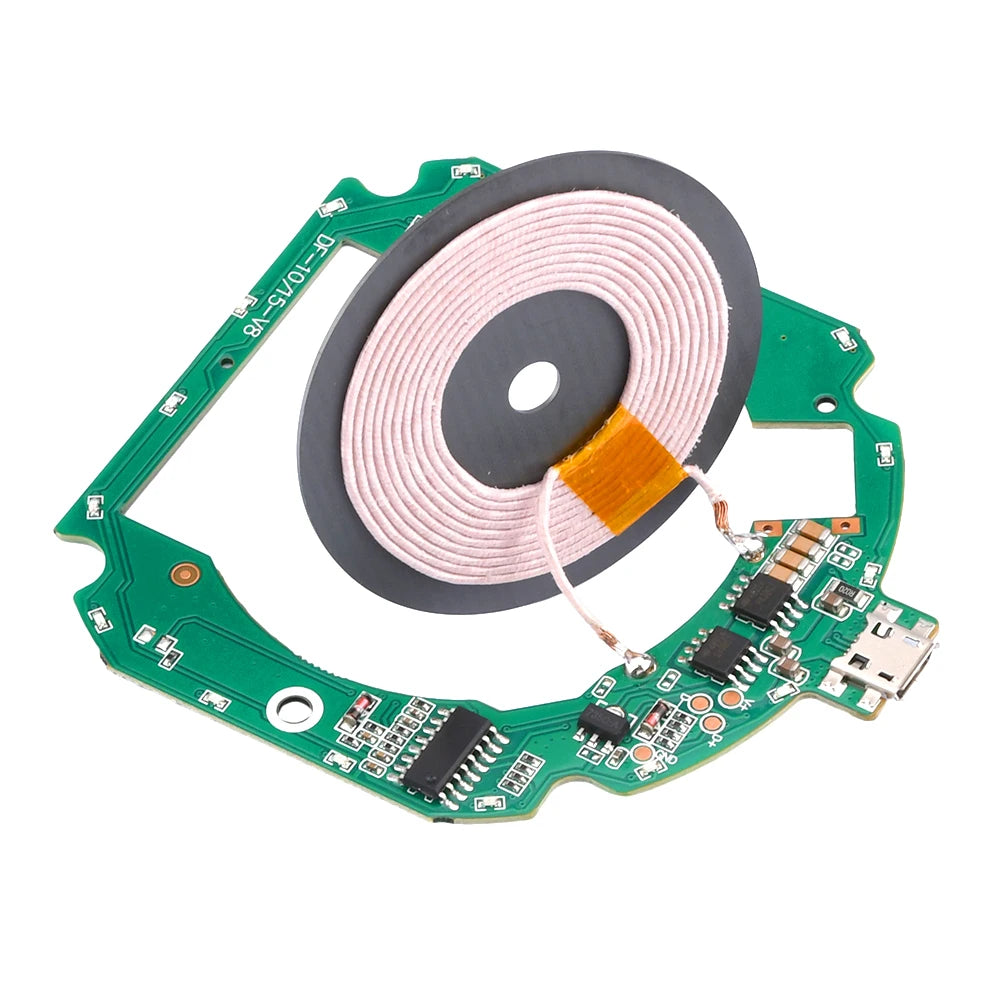

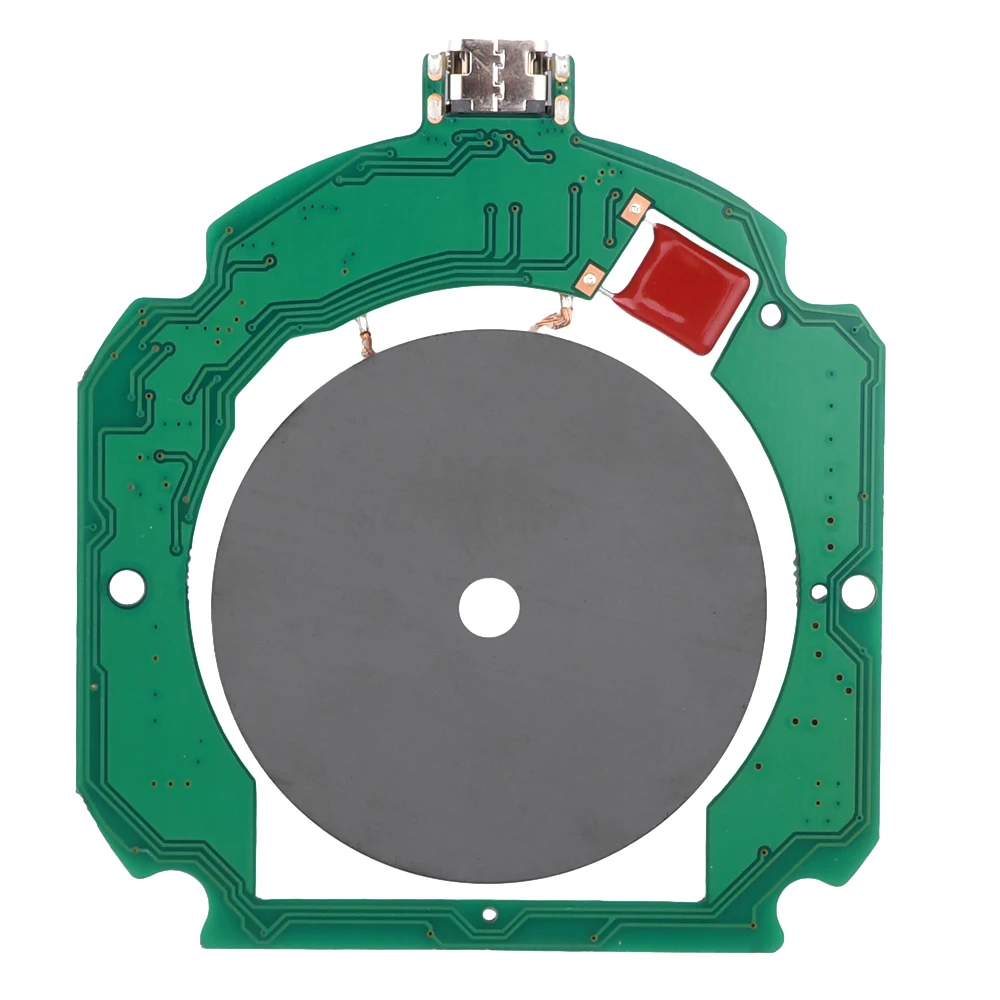

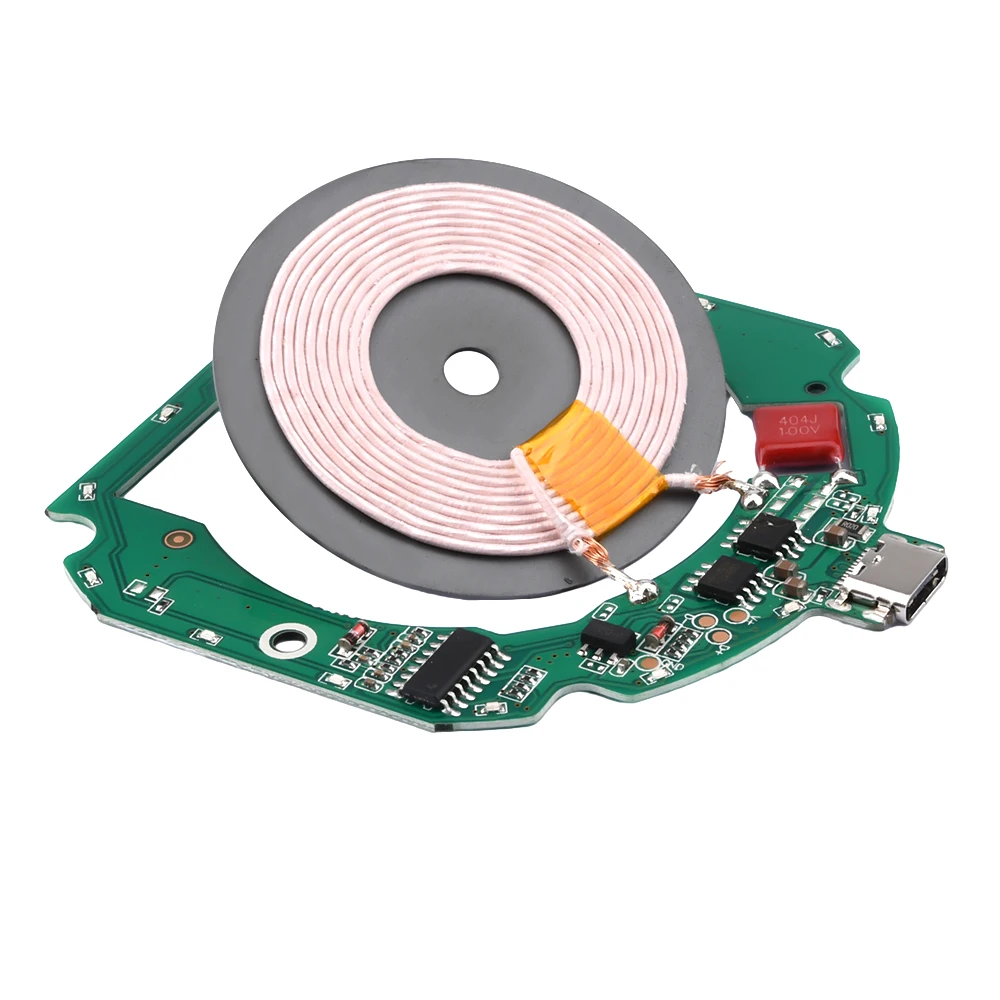

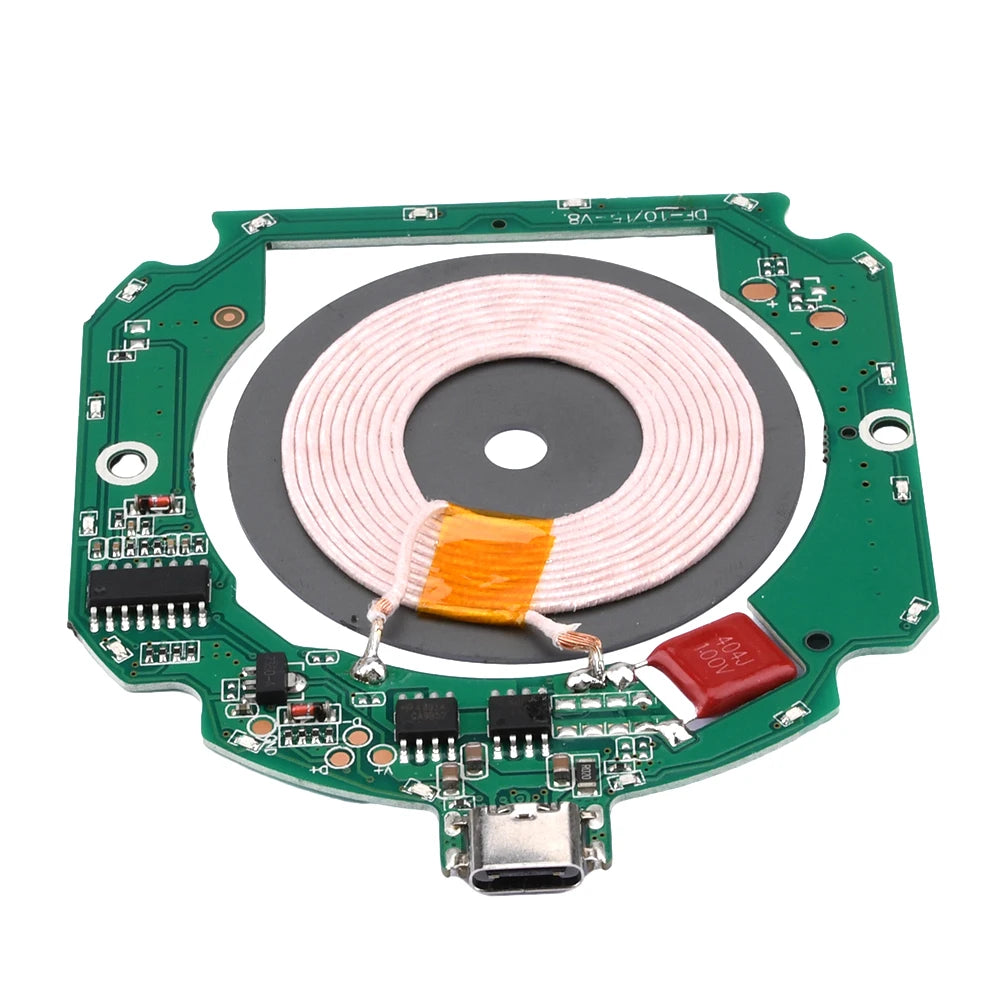

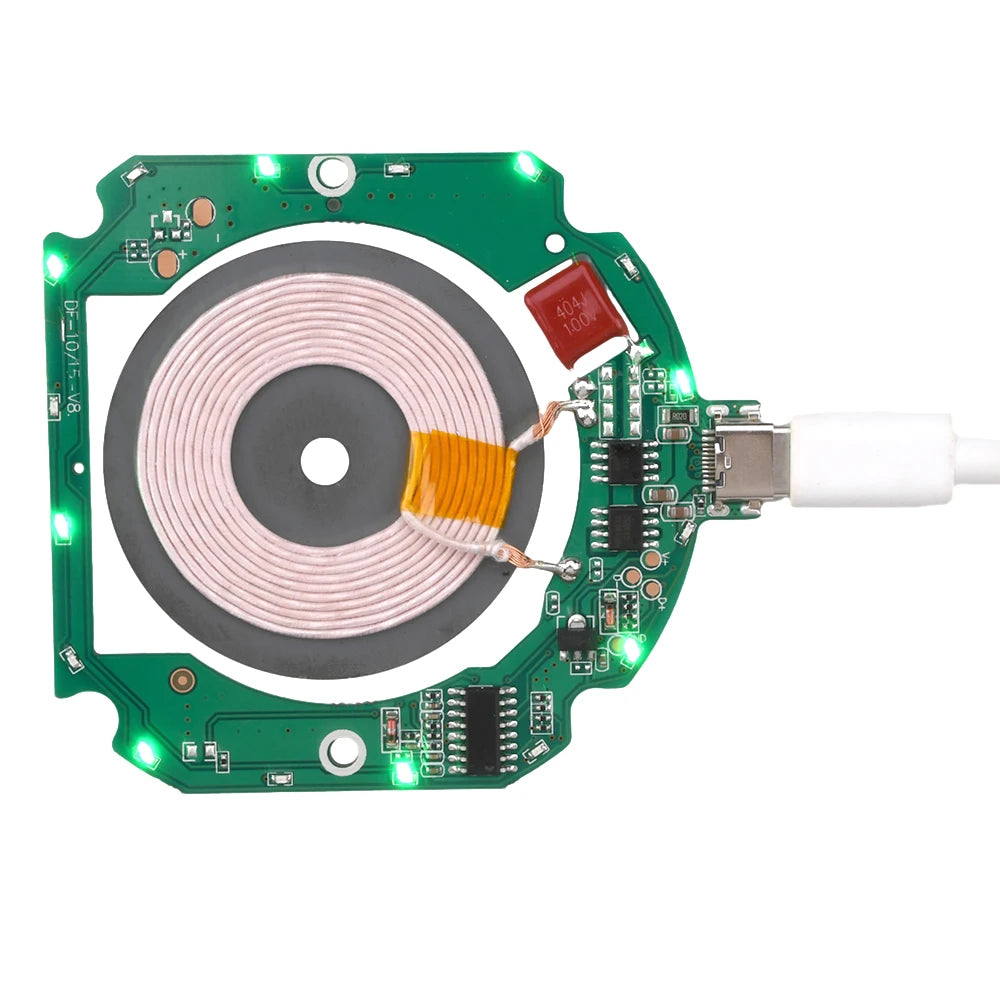

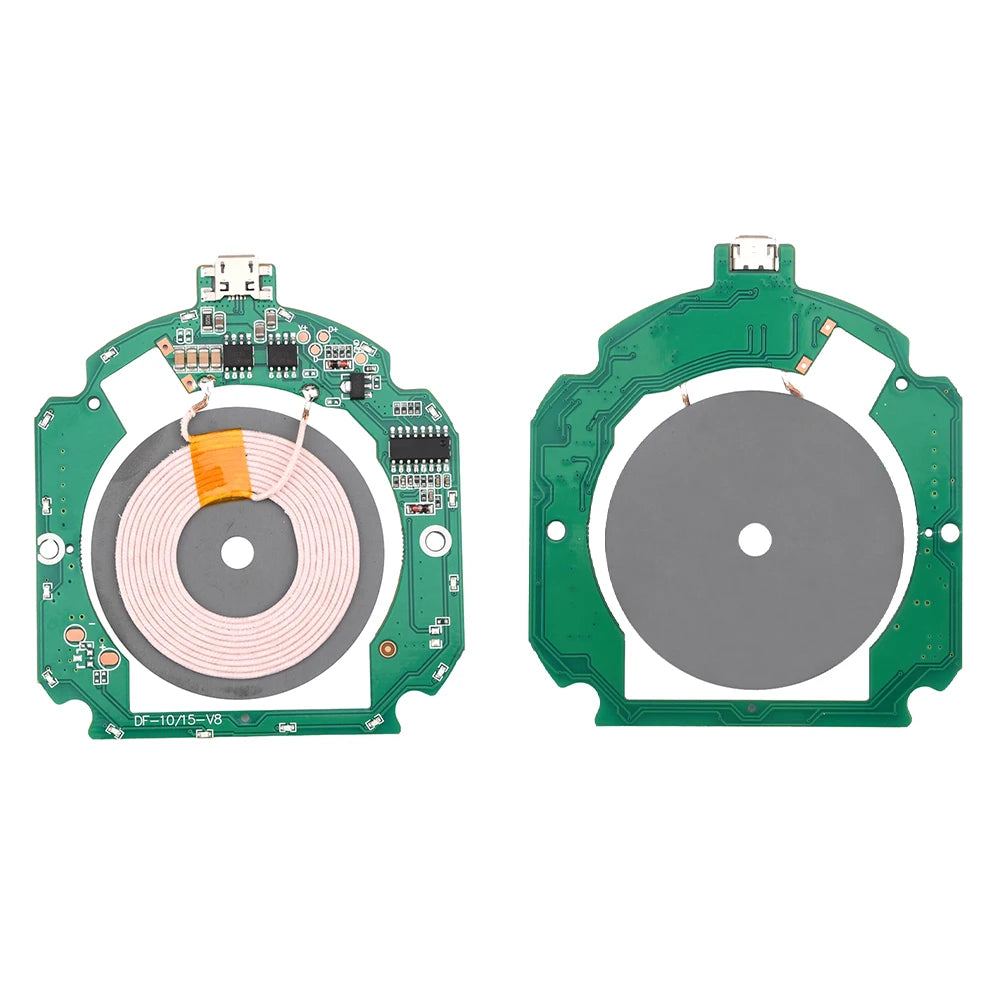

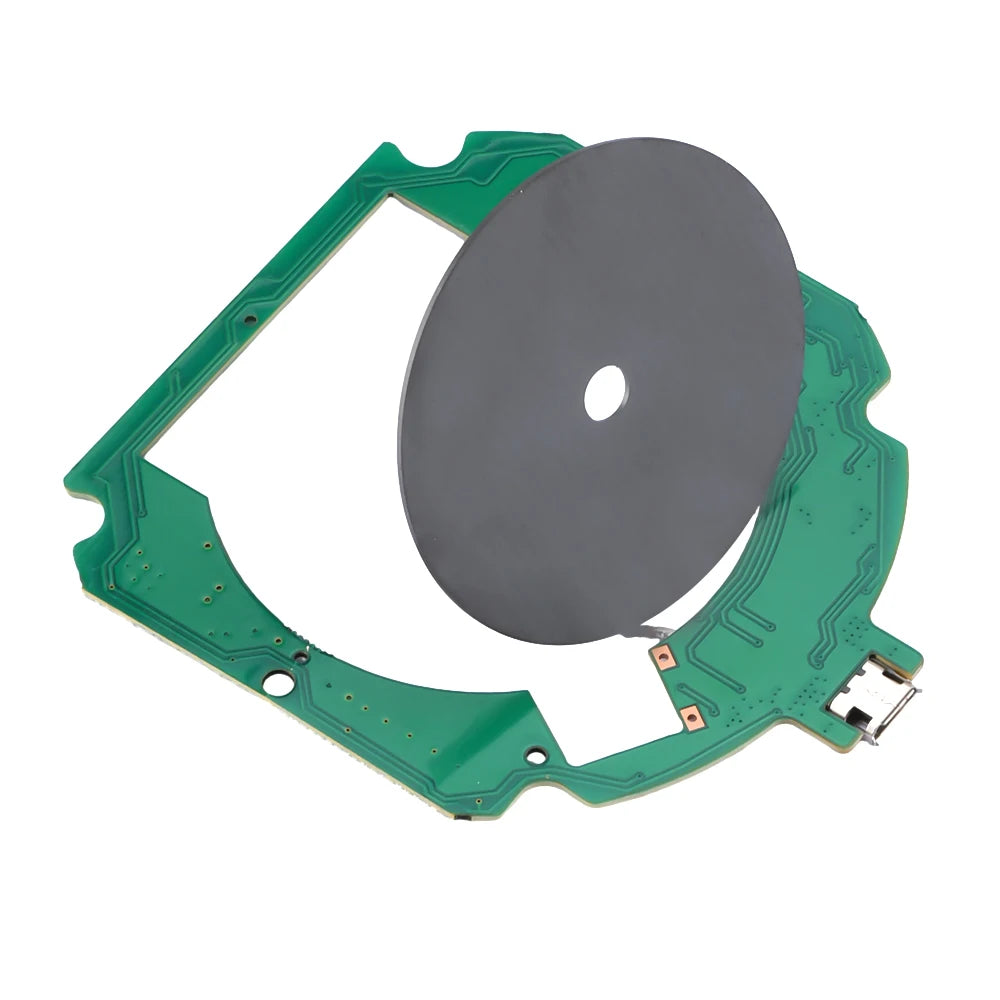

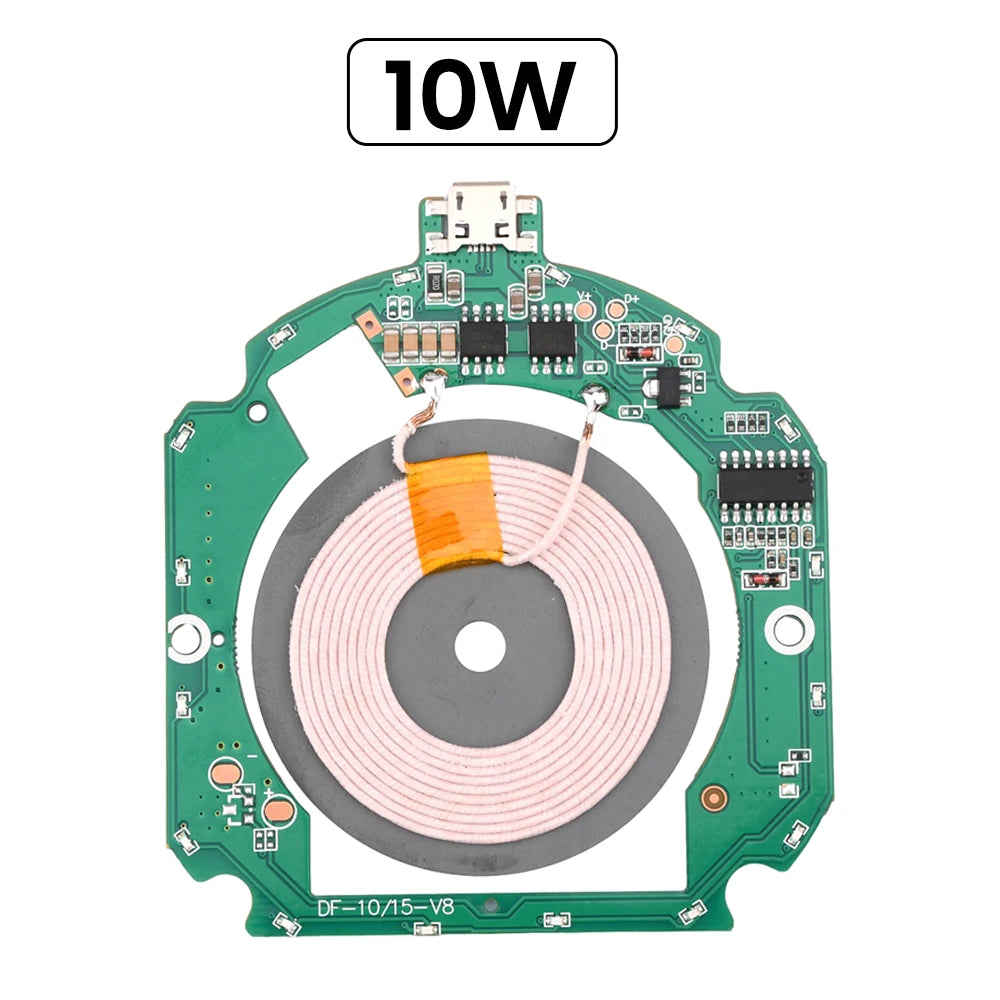

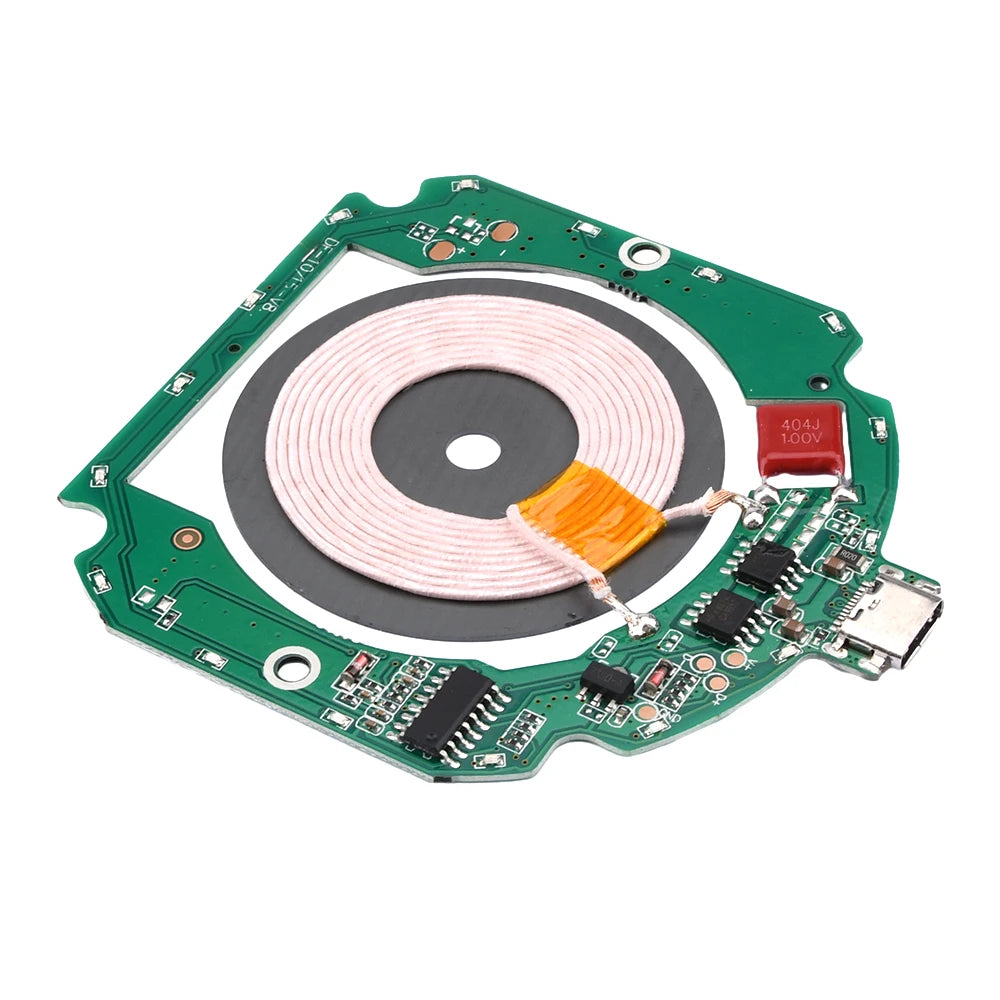

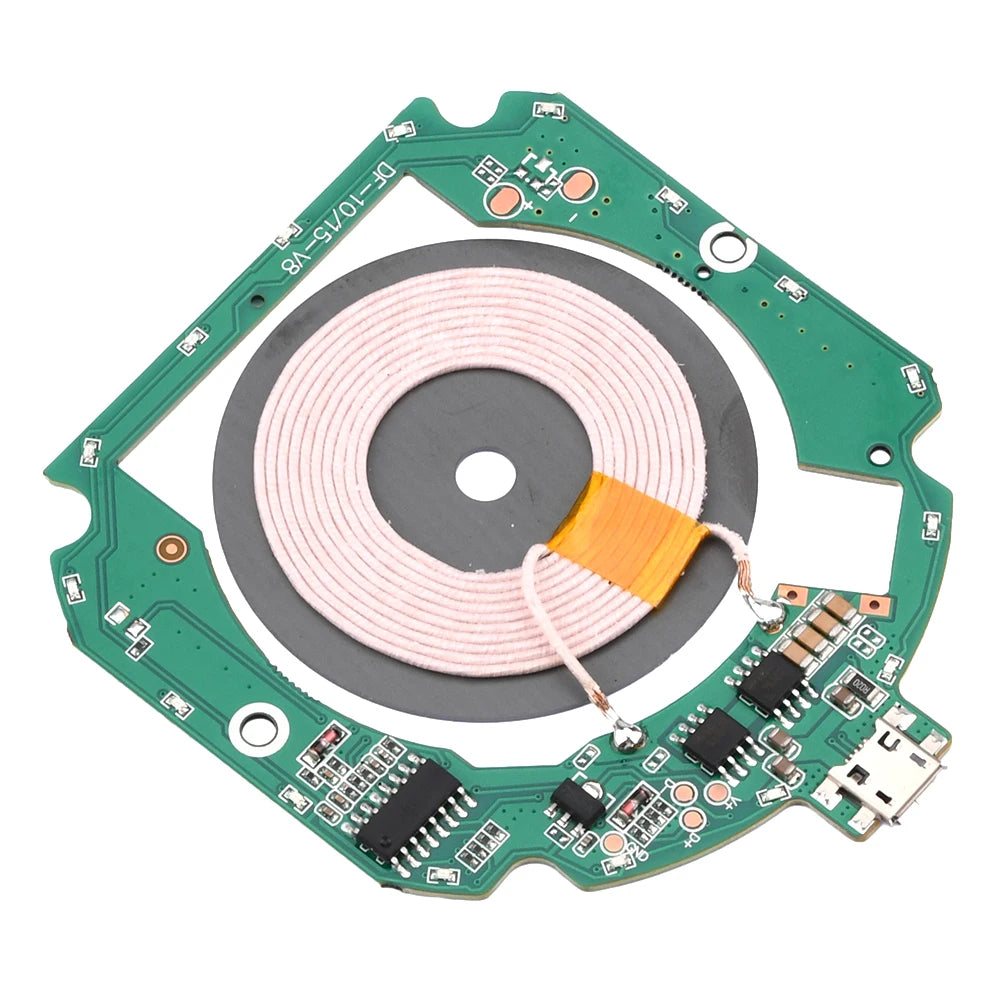

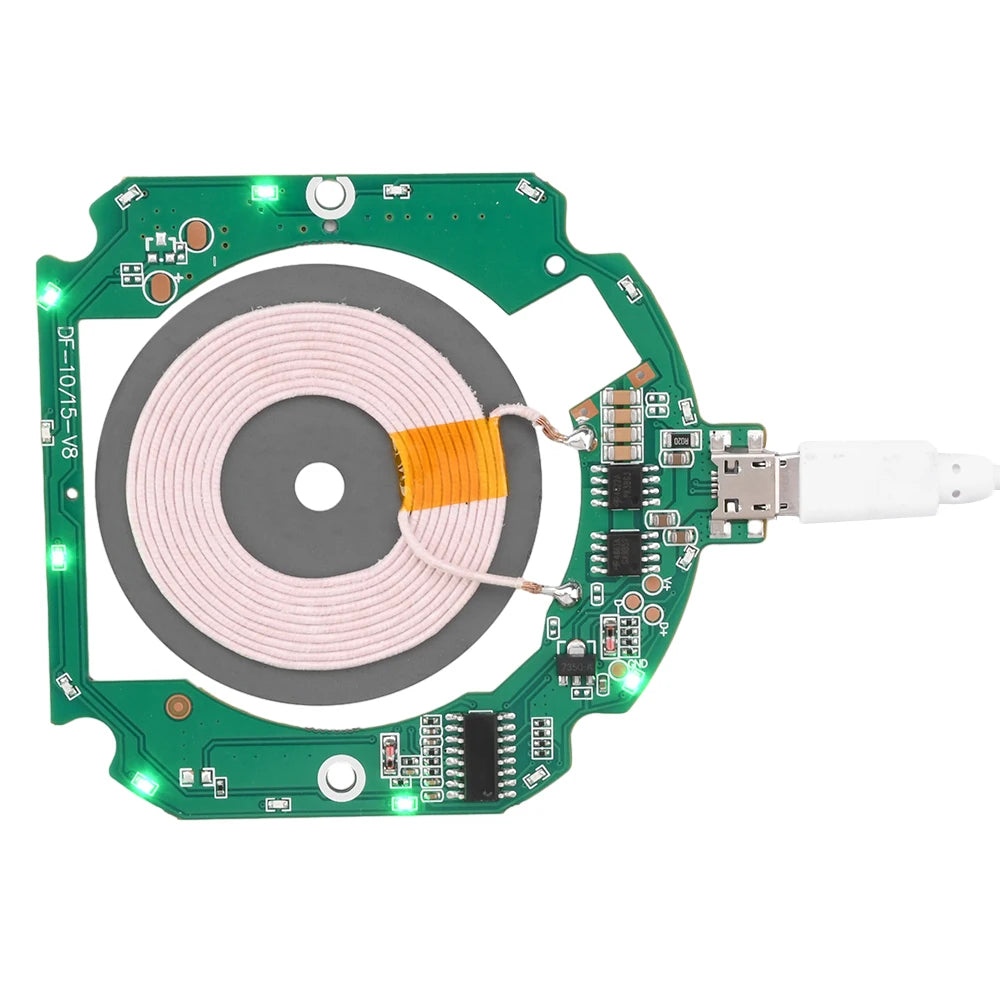

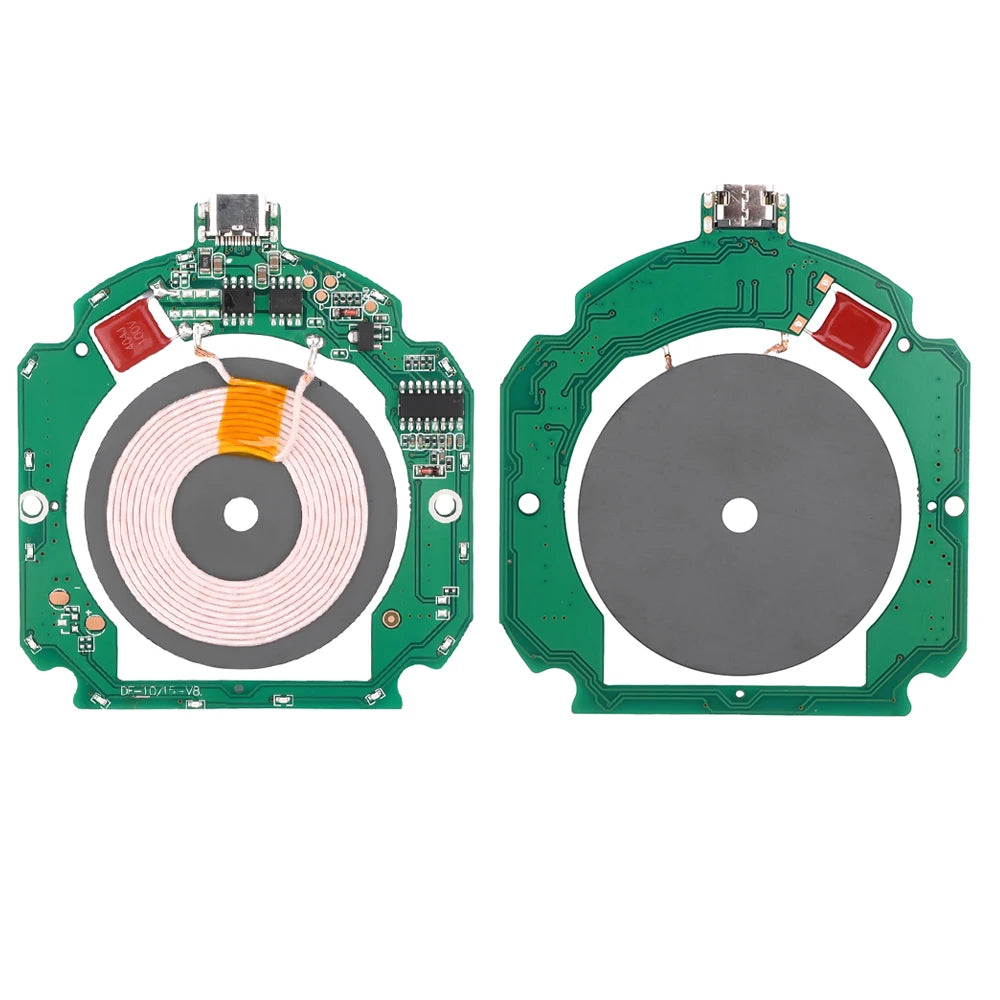

1 x 10W 15W High Power Wireless Charger Transmitter Module Type C Micro USB + Coil QC/PD For QI Standard Fast Charging Circuit Board
